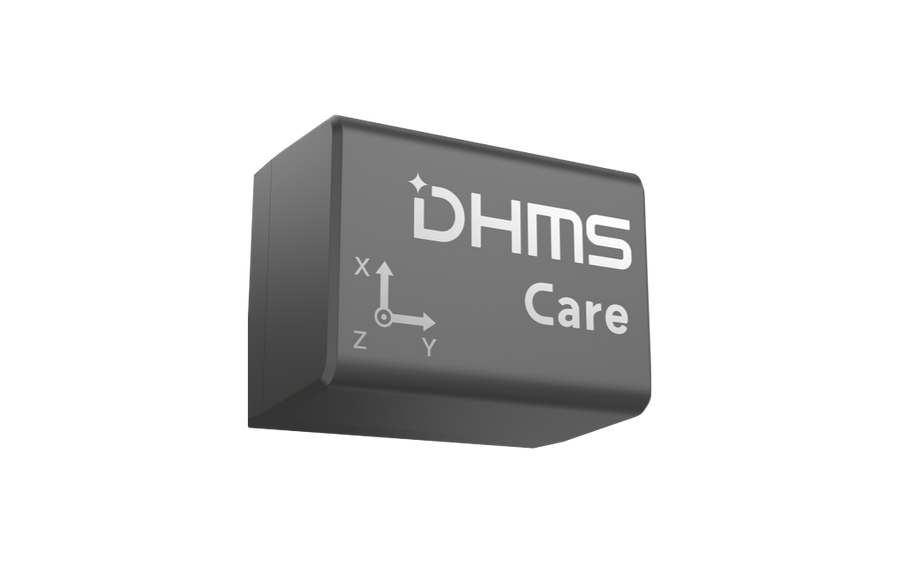

DS300 — Entry-Level Wireless Vibration & Temperature Sensor
$218.00
/ ea
Min. order 10 unitsIn stock · ships worldwide
5-yr batteryIP69 ruggedCE & FCC
Details & specifications
Essential wireless condition monitoring for rotating equipment — the cost-effective way to go proactive.
The DS300 captures 3-axis vibration (0-1000 Hz) and temperature and transmits it wirelessly to the DHMSCare gateway. Ideal for detecting imbalance, misalignment, looseness and overheating across pumps, motors and fans.
Key Specifications
| Vibration sensor | MEMS, 3-axis |
| Frequency response | 0-1000 Hz (±3 dB) |
| Acceleration range | ±16 g |
| Sampling interval | 5 min |
| Temperature | -40 to 120 °C, ±1.0 °C |
| Wireless range | 50 m (dense plant) / 300 m (line-of-sight) |
| Battery life | 5 years (2/3AZ lithium) |
| Dimensions / weight | 46 × 36 × 30 mm / 50 g |
| Ingress protection | IP69 |
| Certification | CE/FCC |
For wider-band detection of bearing and gear-mesh faults, see the DS310 (0-6000 Hz). Pairs with the DHMSCare Air edition and the DG310 gateway.
Need a fleet rollout or a custom quote?
Bulk orders, multi-site deployments and platform onboarding — talk to our team.
